Ultra-low Height Cylinder

1.Suitable for limited work space;
2.Single acting, load return;
3.Working pressure: 1500 bar;
4.Up to 2000 bar for limited times.

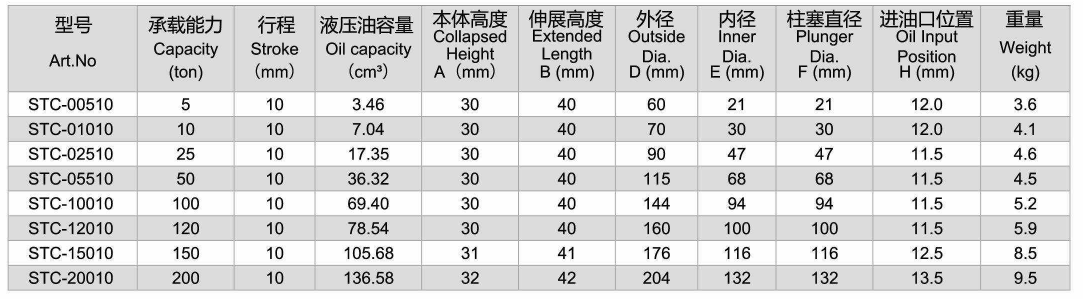

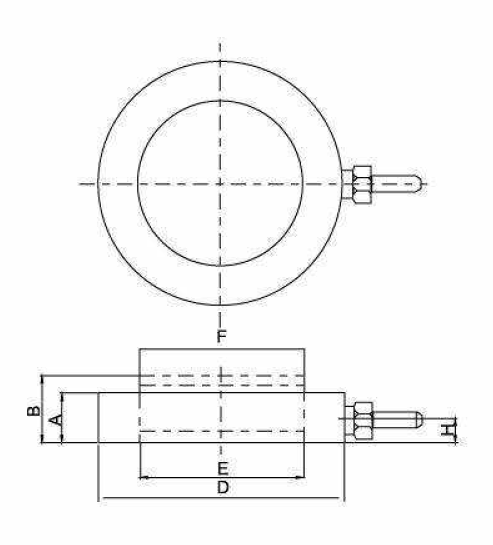

DETAILS
