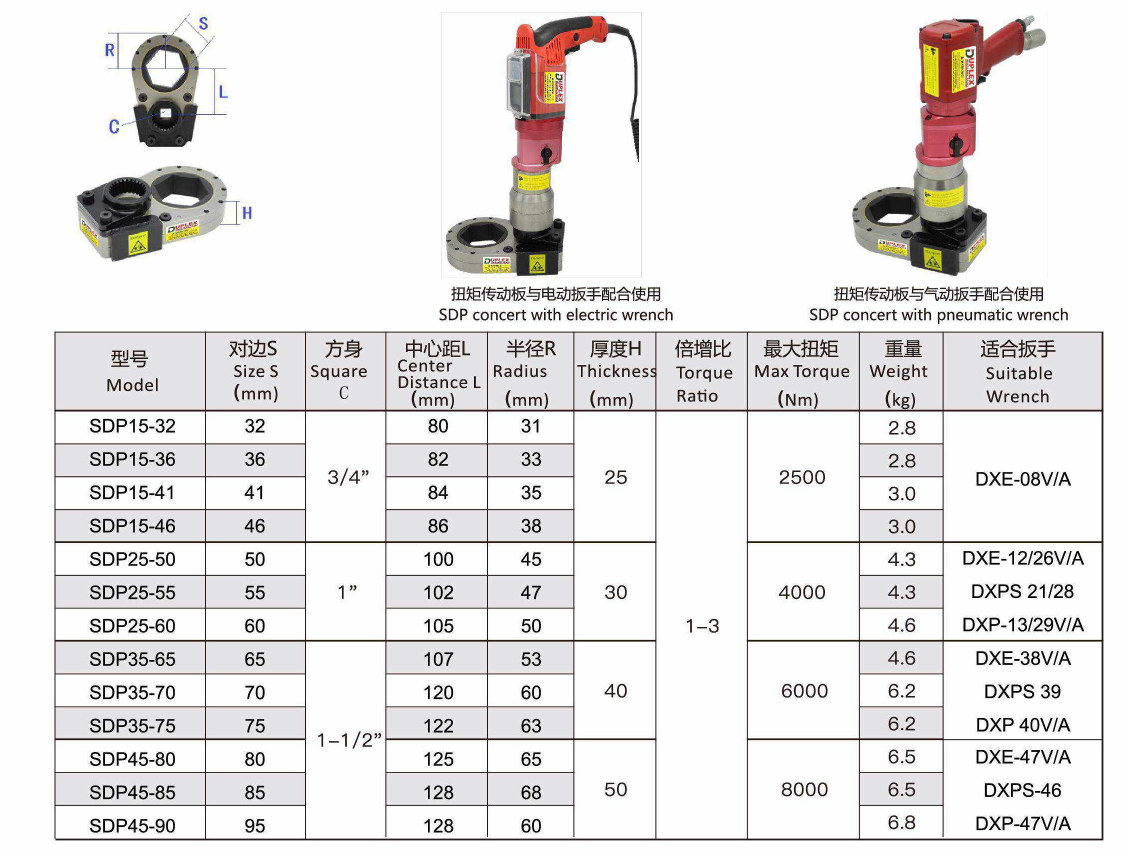

SDP Torque Transmitter

1. Used with electric and pneumatic torque wrenches and multipliers
2. Oﬀset thin design, suitable for axial space limited working conditions
3. Hollow structure, which can be used for occasions with long bolt out
4. It can be equipped with torque ampliﬁcation function, and the wrench is used for larger bolts
5. High precision transmission system ensures stable and accurate transmission
6. Length / width / thickness / center distance, etc. shall be designed according to customer requirements
7. Made of high-strength alloy materials, strong and durable
8. The SDP Gearing is a non-calibrated product and needs to be designed according to the customer's requirements

DETAILS
